Regular maintenance of the dust cap seal is essential to ensure optimal performance. This article provides a step by step procedure for replacing the seal. Please note that this guide serves as a general overview for reference only. Always refer to the manufacturer's official manual operations instructions to safely remove, inspect, and replace the seal.

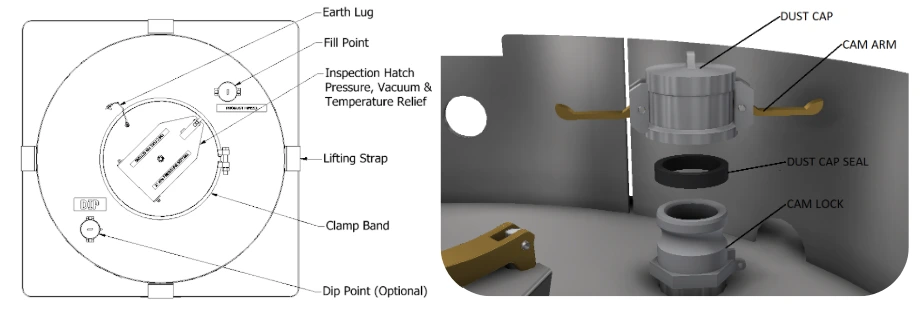

Dust Cap Seal is fitted under Dust Cap component.
To replace the Dust Cap Seal we need to remove the Dust Cap part.
Prepare Support tools like dust cloth & others additional tool.

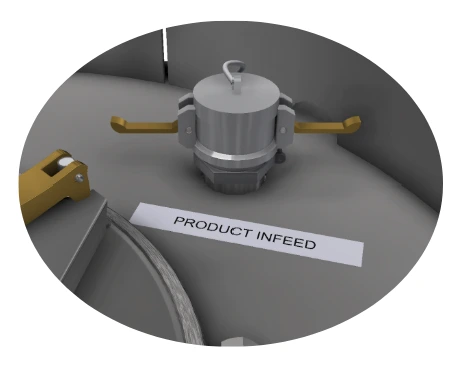

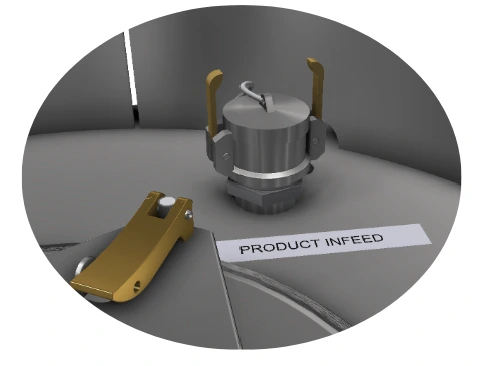

Unlatch (pull back) the cam arm from the Dust Cap

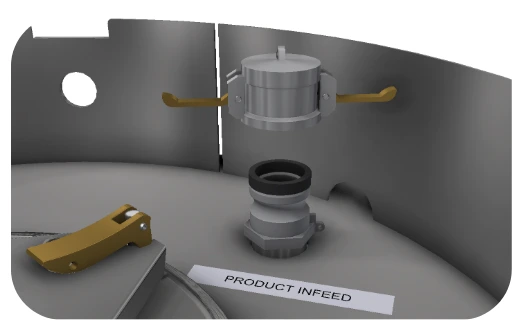

2. Lift the Dust Cap to take the Seal. Then clean the seal and contact area.

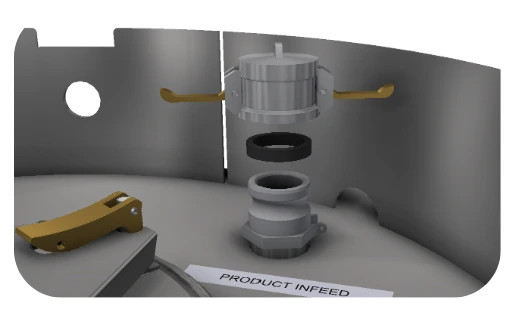

3. Check the Dust Cap Seal is flat and in good condition. Replace the Dust Cap Seal if it need. Ensure surfaces are clean and bright before assembly
4. Reassembly Dust Cap Seal. Ensure Seal and Dustcap in good condition.
